Removing and shipping your ECU safely: step by step

When you send your ECU in for tuning, part of the job is yours: removing it, packing it, shipping it and refitting it when it comes back. That sounds like workshop work, but on most vehicles it takes half an hour, as long as you follow a few rules. Most problems don't arise during programming but on the way there: a torn connector, moisture in the parcel, a housing rattling around in the box. Here is the guide that prevents all of that.

Preparation: look first, then unbolt

Before you disconnect anything, find out where the ECU sits and how it is mounted. On cars this varies a lot by model: in the engine bay next to the airbox, behind the glovebox, under a cover by the scuttle panel or near the battery. Your vehicle's repair manual shows the spot. If you're unsure, ask us first. A short message costs less than a broken bracket.

Also get ready:

• suitable tools for brackets and screws (often Torx or small sockets),
• an anti-static or waterproof bag, for example a zip-lock bag,
• a small, sturdy shipping box and plenty of soft padding,
• a note with your order number,
• your phone for photos.

Take a photo of the ECU, connector and wiring before removal. You'll be grateful for it when you refit everything a few days later.

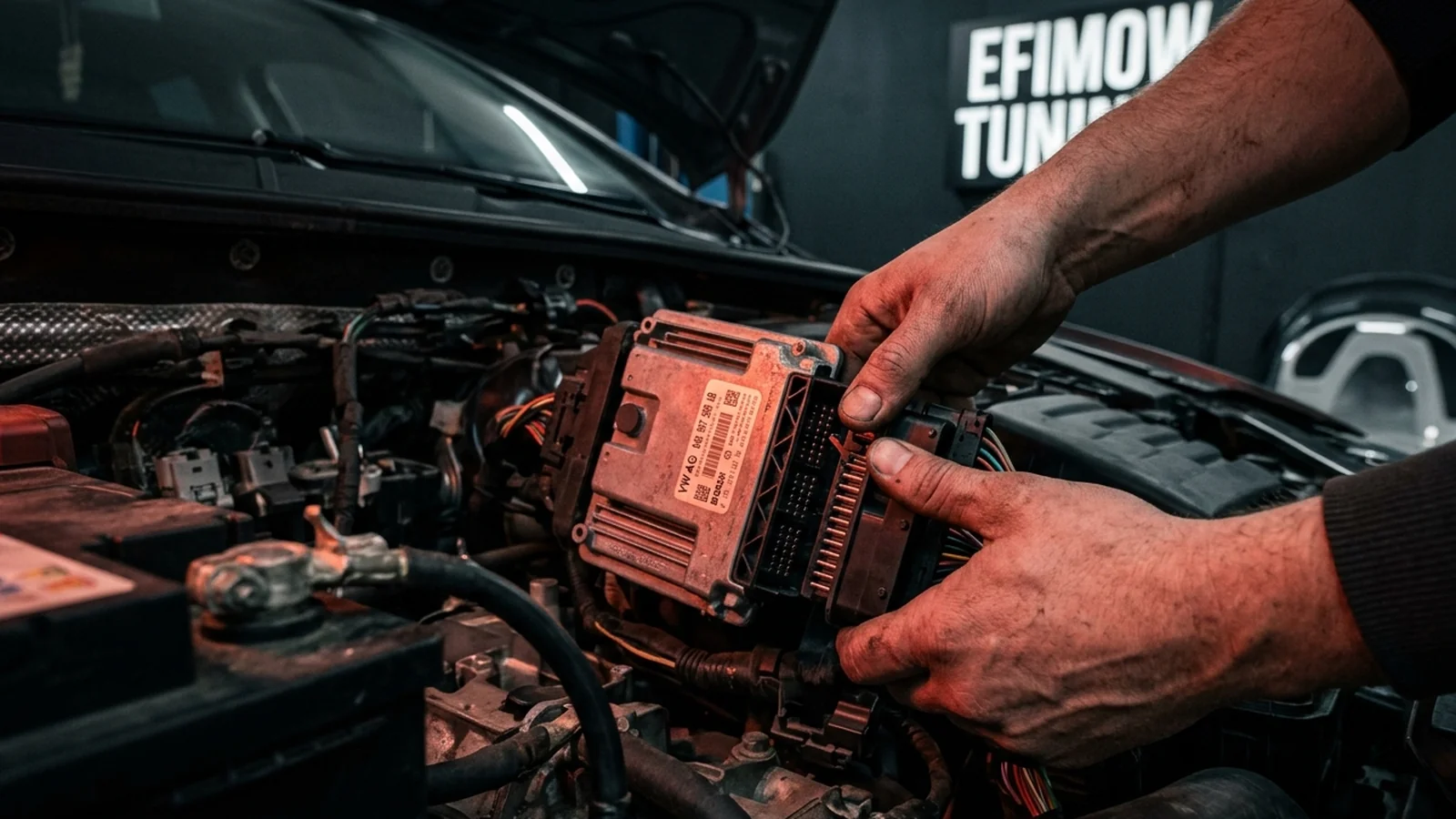

Removal on a car

1. Ignition off, key away. Wait a moment until the car has "gone to sleep". On many modern cars control units keep running for a while after you switch off.
2. Disconnect the battery, negative terminal first. That way you can't short the positive terminal to the body with your tool.
3. Unlock and pull the connector. ECU connectors almost always have a lock: a lever, a slider or a latch. Unlock first, then pull on the connector housing, never on the wires. If the connector sticks, it is almost always because the lock isn't fully open, not because of a lack of force.
4. Release the ECU from its bracket. Undo screws or clips and take the unit out. Bracket and screws stay on the vehicle; we only need the ECU itself.

A few things you should deliberately not do: don't open the housing, don't remove any labels and don't touch the connector pins with your fingers. Labels carry part and software numbers we need for identification. And if your ECU has to be opened for access, we do that at an ESD-safe workstation.

Removal on a motorcycle

On KTM, Husqvarna and Husaberg with a Keihin ECU it is much easier, because the ECU sits within easy reach under the seat:

1. Remove the seat.
2. Disconnect the battery: negative terminal first.
3. Take out the ECU: it sits in a rubber holder. Pull it upwards together with the holder.
4. Unplug the connector: press the button at the bottom of the connector and pull the connector off. Don't pull on the wires.

The illustrated guide is at ship your ECU.

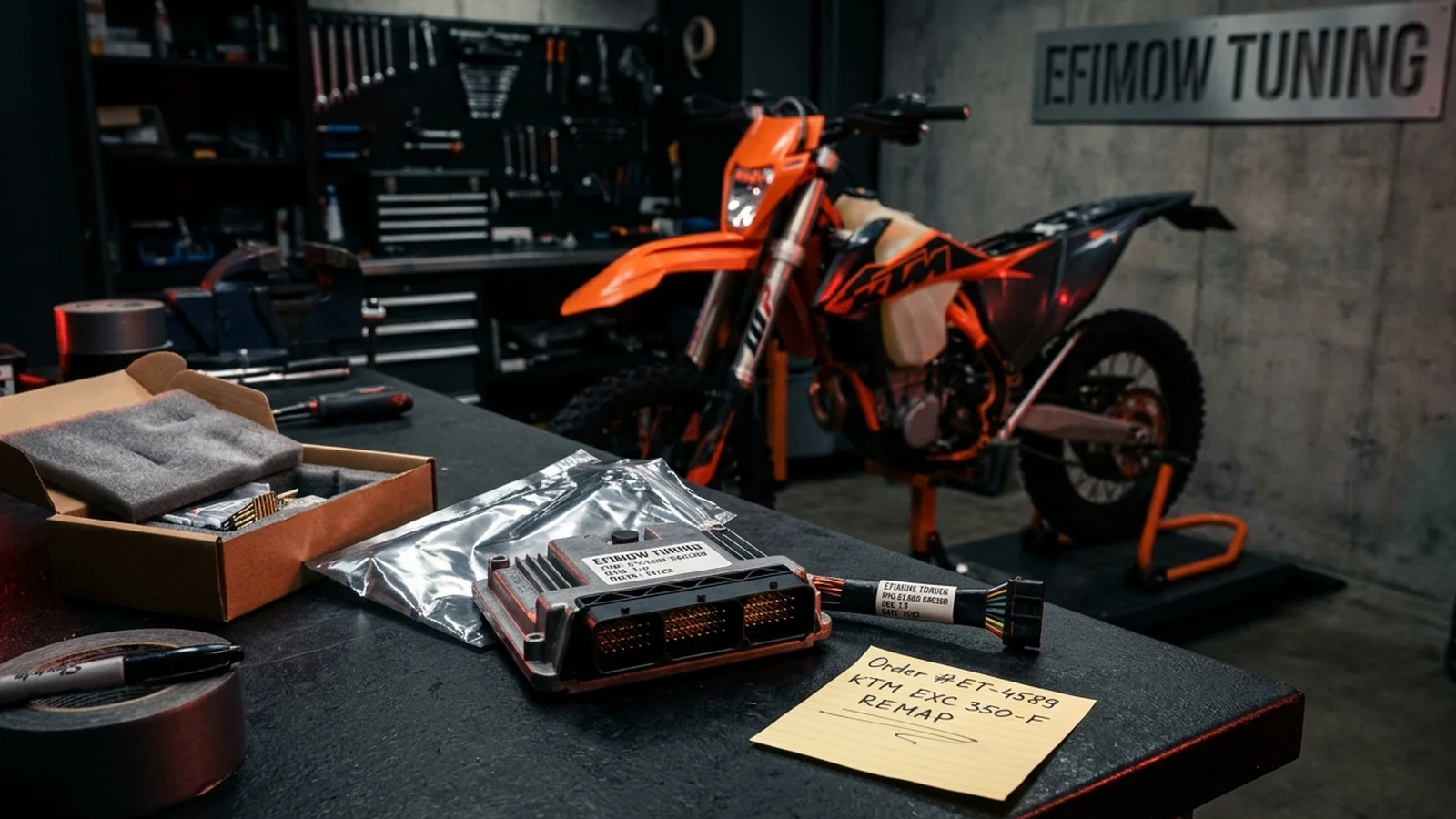

Packing: dry, padded, clearly labelled

An ECU is tougher than it looks: in the vehicle it copes with heat, vibration and splash water. In a parcel, though, other dangers lurk: impacts, pressure, moisture and electrostatic discharge at the open pins.

How to pack it properly:

• ECU into the bag. An anti-static bag protects the electronics, a waterproof bag protects against moisture. Squeeze most of the air out and seal the bag.
• Pad it all round. The unit must not move in the box. Bubble wrap, foam or crumpled paper on every side, above and below the ECU too.
• Add the note with your order number. Without it we first have to work out whose unit it is.
• Take a photo before you close the box. That documents how the parcel left.

A word about the box: a small, sturdy shipping box beats a large, half-empty one. The less air between padding and wall, the less the ECU can move. And tape the box along all open edges, not just down the middle.

Please don't add wiring looms, brackets or screws. They aren't needed for programming and at best get lost.

Shipping and sharing the tracking number

Send the parcel insured and with tracking to the address in your order confirmation: Efimow Tuning, Birkenzeller Str. 23, 73495 Stödtlen, Germany. Then give us the tracking number via the link in your order confirmation. That way we know something is on its way, and you can see in the status when the ECU has arrived with us.

For motorcycles you can also pay cash. In that case the money goes into the parcel in a sealed envelope with your order number. Insured shipping is then a must, not a nice-to-have.

What happens at our end is the same for every unit sent in: read and save the original data, adjust the software, write it back. Then the programmed ECU goes back to your delivery address. For motorcycles the whole thing takes about 3–7 days by post, shipping both ways included.

When it comes back: refitting

Refitting is removal in reverse:

1. Fit the ECU and secure it (on a motorcycle in the rubber holder).
2. Plug in the connector until it clicks in noticeably, then close the lock. A half-seated connector is the most common cause of "engine won't start after tuning".
3. Reconnect the battery, now positive terminal first, then negative.
4. Refit covers or seat, ignition on, wait a moment, start the engine.

Because the battery was disconnected, some cars may need to relearn the clock, window end positions or similar comfort functions. That has nothing to do with the tune, only with the power interruption. If a warning light stays on after refitting, check the connector first and then get in touch with us.

Common mistakes at a glance

Mistake	Consequence	How to avoid it
Pulled on the wires	damaged wire or pin	always pull the connector by its housing
Disconnected positive first	short-circuit risk with the tool	negative off first, positive on first
Shipped without a bag	moisture, static discharge	anti-static or waterproof bag
Hardly any padding	impact damage to the housing	pad all round, nothing may rattle
Forgot the order number	identification takes longer	note in the parcel
Connector not latched	engine won't start, faults	push until it clicks, close the lock

Legal note

Programming changes the engine software. This voids the vehicle's operating permit, and the functions are intended exclusively for motorsport. Details are in the motorsport notice.

Conclusion

Removing and shipping your ECU is no black magic. The key rules fit into one sentence: negative off first, pull the connector by its housing, pack it dry and well padded, ship it insured and share the tracking number. If you're not confident about the removal, you can also choose an appointment on site in the configurator. The price is the same.
